Don't you know when it's going to be released?

Share this post

Link to post
Share on other sites

million dollar question years in the making. Latest I heard was testing on lithium batteries for plane travel was being conducted. Since my daughter flies for a living I'm okay with seeing this done.

Share this post

Link to post
Share on other sites

No, nobody knows. It sounded pretty close but then there was a delay, apparently over waterproof integrity issues being resolved. Complete radio silence from First Texas so not even a hint. Maybe they are forgoing the pre-release tease advertising that has become so common, and it will just be announced someday as ready to ship and buy. That would be kind of refreshing actually.

  • Like 2

Share this post

Link to post
Share on other sites

Leaky cases are always a critical failure in a waterproof design. I have no idea if the supposed case leak has anything to do with the slow pace of final pre-production development at Fisher - as Steve said, Fisher is “leaktight” (lol) on the subject of the Manta/Impulse!

Here’s some stuff on leak testing waterproof items from a major supplier of testing services and hardware.

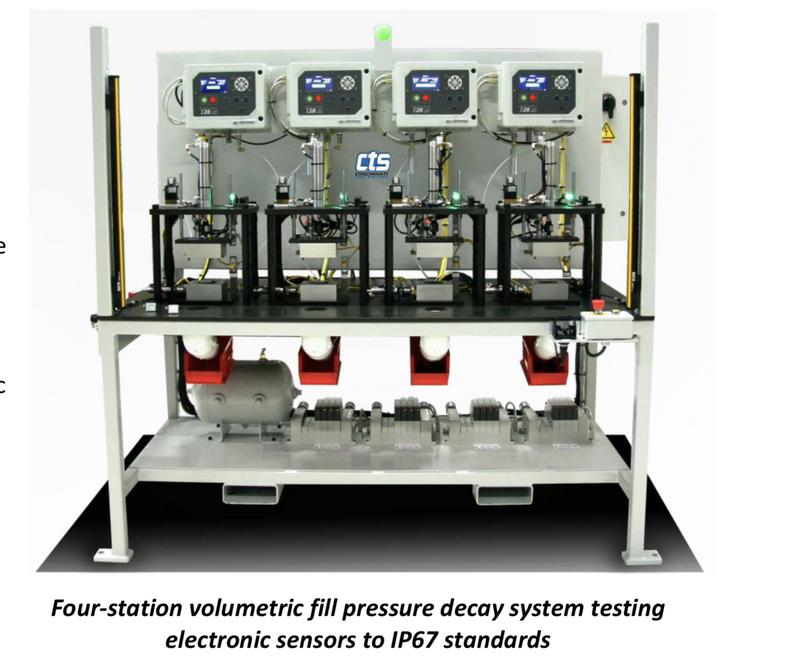

Here’s some stuff from the biggest testing company in the area of leak detection of electronic devices.

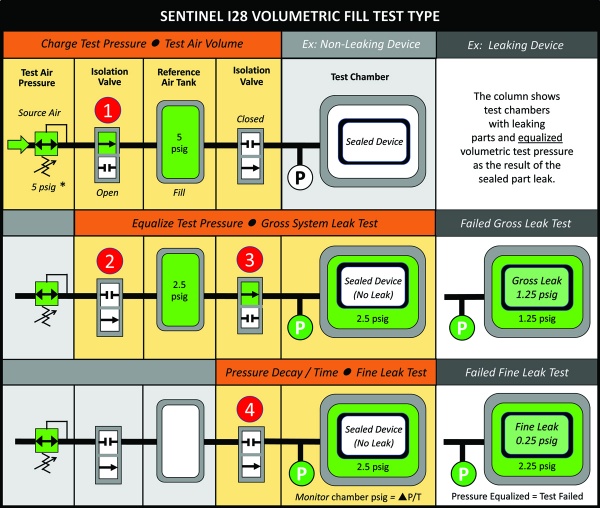

This shows the two-step test. A container with the device in it is pressurized to a given level. If that pressure decreases, i means the air has leaked into the device (the interior of the device is at ambient pressure to begin with - a pressure lower that the level the chamber is pressurized to.

4-C67-C7-FE-6061-4-B3-B-ADE3-F7-A05-F87-D40-B.jpgpic upload

1-FB989-FF-CD91-4-EA4-8-D2-F-CF574732351-A.jpgupload photo to internet for link



  • Like 1

Share this post

Link to post
Share on other sites

On the general topic of the Impulse/Manta not being ready for product launch, I think Olson Wells summed it up long ago

OK - I swear the AQ ain’t no cheap California wine, but the classic Olson Wells commercial for Paul Masson, is probably in line with the thinking of the “gnomes” in El Paso. When it’s ready, it will be ready.


Hope the "Finish" is as expected.

  • Like 2

Share this post

Link to post
Share on other sites


What do you think the learning curve will be like on the Impulse? For most wetsand(with black sand influence for me) will it be set it and forget it? I'm trying to get me head around what exactly is going to be the way to go on most beach applications. I know it's early to speculate but you're better connected than most.

Share this post

Link to post
Share on other sites

How in the world would First Texas survive without you Rick! :smile:


  • Like 2
  • Haha 1

Share this post

Link to post
Share on other sites

Skate, The Impulse is on the whole slightly less “fussy” than the TDI (I have had two of those). The controls are similar, but there are differences. One big difference is that there is no huge depth penalty like is found in the TDI when the TDI is in GB on mode vs. GB off.

Below is a photo which was released after Fisher brought a proto to the Huge Outdoor Expo in Germany. Here is my best shot at explaining how it works. Please note that l have only used a prototype and that only for a few hours per day over three days.

Volume and Threshold are pretty self-explanatory. Likewise Sensitivity operates pretty much like on any other detector.

The two smaller knobs at the bottom are -

on the left, the on/off, Batt test, noise cancel, all metal and two discrim modes - mute and tone.

The right hand one sets the noise cancel position when in noise cancel and the pulse delay when operating in all metal or one of the two discrim positions.

The start up routine is turn on to noise cancel, then rotate the right hand bottom knob till you get the quietest audio - there is no stop, it’s just a rotary encoder.

Turn to all metal and set comfortable level of sensitivity, threshold and volume. The Sat Speed works much like the SAT or recovery speed setting on a VLF, longer signals with more depth perhaps or shorter ones to enhance the discrim function if you are using it.

The Iron Mask Knob increases the effect of discrimination in the Multitone or mute iron ID modes (selected with the lower left knob).

The Pulse Delay control is generally used at the minimum which conditions allow. Some circumstances may require a longer pulse delay to compensate for salinity, running salt water or other factors. The shorter the delay, the more sensitivity to ALL targets, not just to small ones.

The SAT and Pulse delay interact to some degree so adjusting the delay may make you want to tweak the SAT.

Unless ferrous junk is a serious problem, all metal is the quietest mode and the most straightforward to use. It also has the max depth (although the sensitivity difference between it and the ID positions has been steadily reduced as the successive prototype revisions were developed).

LeJag, who has been the chief development tester, hunts in all metal and finds that he seldom needs to cross-check in discrim. - but he has been using PI’s for a decade and is an ace.

In my limited use of a prototype last October in San Diego, I found the all metal or the iron mute discrim mode to be the most comfortable for me.

None of the settings are super critical. The



  • Like 7
  • Thanks 1

Share this post

Link to post
Share on other sites

Very nice write up and much appreciated. My hope is that it will open up the wet sand hunting opportunities regardless of tide and sand conditions. Depth is depth and nothing beats a PI so my funds are going to be committed. Gas prices are too high to head to the beach for clad so it's gold or stay home for me.

  • Like 1

Share this post

Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
Sign in to follow this

  • Similar Content

    • By Dances With Doves
      how is the mineral content in lake tahoe. Is it bad?I   heard that the land on that lake is highest price in country.Canandaiugua lake by me is  second so I hear.Canandaigua is where Susan b Anthony had her trial. I found a steamer tag 1865-1889 from a ship by that name that I think burnt.
    • By Steve Herschbach
      With thanks to PPP, here is the new official Fisher Impulse AQ Facebook page:

      And phrunt found this:
      Organization: FIRST TEXAS PRODUCT Presumably we will see the first full announcement information on the Facebook page since that is how things seem to be done these days. Interesting there has been no mention of the main Fisher company Facebook page.
    • By Steve Herschbach
      With the exception of the battery cable sticking out the back I really like the look of this detector. And after swinging a 7 lb Garrett ATX this 4.2 lbs of well balanced detector is going to seem like a dream on my arm. I ditched both my ATX and my 7.2 lb Minelab GPZ 7000 a couple years ago in a fit of passive-aggressive protest over those heavy beasts, and swore not to buy another pulse machine until somebody made something more in line with the ergonomics I desired. The Impulse AQ tips the scales at a little over 4 lbs, but that is largely because of the 12" round coil. A smaller coil is a distinct possibility, as is the ability to belt mount the battery. That's the benefit of that funny looking battery cable arrangement - external batteries. In any case, good enough for me and a huge improvement of what I'm used to. The price remains to be seen, but it has a good chance at coming in under $2000, making the new Fisher Impulse AQ one of the best contenders so far in my Under 4 lb, Under $2K Challenge
      Fisher Impulse AQ Data & Reviews

      Fisher Impulse AQ discriminating pulse induction metal detector
    • By Bill (S. CA)
      Hey Rick, heard anything more from El Paso as to their return to work?
      Fisher Impulse AQ Data & Reviews

    • By fredmason
      I may have missed this issue..you know I am not very smart.
      will the prospecting, nugget finding version be wireless?
       I could not, would not buy another detector that doesn’t have a module.

    • By BigSkyGuy
      Many of you have expressed a desire to know how well the Impulse AQ will function for land use. One option is to wait until the unit is released. I know, no fun! The other option is to analyze the information we do have on the unit and on PIs in general, combined with information from the scientific literature and various forum posts. I have done such an analysis which is a bit long, but I will summarize the findings followed by how I arrived at the conclusions. The places where I believe the unit will be effective include the following:
      Black sand beaches (mainly coarse unweathered magnetite)
      Soils containing mildly weathered granite and other felsic igneous rocks (I know this appears to conflict with Alexandre’s post, but I will elaborate below)
      Unweathered or mildly weathered basic igneous rocks (basalt, gabbro, etc.)
      Places where I think the AQ will struggle include:
      Weathered basalt and soils derived from basalt
      Some fine-grained volcanic rocks such as rhyolite.
      The basis of my groupings above is the published magnetic susceptibilities (MS) for various minerals and rock types and on the concept of frequency dependent MS which is a very important consideration for PI detectors.
      MS is a measure of the magnetization of a material in response to an applied magnetic field. Frequency dependence is when the measured MS varies when different frequencies are used for the induced field. Minerals with high MS are responsible for the “mineralization” when speaking of metal detector performance. Three minerals are responsible for most “mineralization”; magnetite (Fe3O4), titanomagnetite, and maghemite (ꝩ-Fe2O3). The MS for these minerals are orders of magnitude higher than for other iron minerals such as hematite (α-Fe2O3), goethite, biotite, pyroxenes, etc. The relative proportions of these minerals within different rock types determines the MS of the rock. Ranges for different rock types are shown in the table below.
      Rock Type
      Magnetic Susceptibility Range (10-6 SI)1
      Igneous rocks
      Average felsic igneous rocks
      Average basic igneous rocks
      1.       Compilation from Hunt et al. (1995)
      Minerals with high MS are responsible for the poor performance of VLF metal detectors. Hematite within soils is typically red, but given the relatively low MS, is not particularly problematic to metal detectors. So, red soil is not always bad!
      The MS of soil is a function of the parent rock from which it was formed (see table) and the degree of weathering of the iron minerals present. Soils formed from basic igneous or volcanic rocks such as basalt generally have higher MS than soils formed from felsic rocks (rhyolite, granite, etc.), but it depends on the specific rock. For example, some granites have low MS because they are dominated by ilmenite (S-type granite) as opposed to magnetite (I-type granite). Ilmenite has low MS. Geologists use MS to map different types of granite. Da Costa et al. (1999) found that the basic volcanic rocks from southern brazil produced soils containing maghemite (high MS) and hematite while the intermediate to felsic volcanic rocks produced soils containing goethite (low MS). However, there are examples of basic rocks having low MS and felsic rocks with high MS, it all depends on the mineralogy, the grain size, the degree of weathering, subsequent geochemical reactions during and after soil formation, and other factors.
      Typically, the smaller the grain size, the higher the MS. Therefore, a volcanic rhyolite which has a much smaller grain size than its intrusive equivalent granite, will have a higher MS even for an identical magnetite content. Smaller magnetite particles also weather faster than coarser grains. Magnetite can weather to maghemite on exposed outcrops. Maghemite is an earthy mineral that forms very small grains. The small grains produce a superparamagnetic domain which results in frequency-dependent MS which causes problems for even PI metal detectors, especially PIs which do not have the ability to ground balance (such as the Sand Shark and Impulse AQ). Magnetite can also form very small grains, and if small enough can also be superparamagnetic. However, magnetite tends to be coarse-grained while maghemite tends to be very fine-grained.
      Maghemite tends to form from magnetite and other minerals in tropical climates or where tropical climates once existed. The “bad ground” in Australia is due to the presence of maghemite, which is a brown to brick red mineral. Maghemite is less common in the US but is present. Magnetic anomalies found at the National Laboratory at Oak Ridge TN were found to be natural deposits of iron-bearing colluvium (sediment which has accumulated at the base of a mountain range) which has oxidized to maghemite (Rivers et al., 2004). Maghemite and hematite can be created from goethite (α-FeOOH) in response to the heat generated by forest fires and slash and burn agriculture (Koch et al., 2006). Therefore, poor detecting conditions can be created in such areas.
      The bad ground at Culpepper VA is probably due to maghemite, but I have seen no information to confirm this. Geologic maps of Culpepper Co. do show the presence of basic bedrock, such as basalt and dolerite.
      The granite that Alexandre mentioned as giving the Impulse AQ problems may be an I-type granite (magnetite rich) in which the magnetite has partially weathered to maghemite.
      The reasons for why I think the Impule AQ will or will not work in various soils/rock types is summarized below.
      Soil/Rock Type
      AQ Works?
      Black sand layers on beach
      Black sand is derived from physical weathering of igneous and metamorphic rocks in upland areas and consists mainly of relatively unweathered magnetite.
      Soils derived from felsic igneous rocks
      Felsic igneous rocks with high MS, tend to be coarse grained and even when dominated by magnetite (I-type) do not typically produce maghemite unless highly weathered.
      Soils derived from basic igneous rocks
      Probably not
      Soils derived from basic igneous rocks tend to be dominated by maghemite.
      Basic igneous hot rocks
      Basic igneous rocks such as gabbro can be a problem if weathered or partially weathered to maghemite.
      Felsic igneous hot rocks
      Unless highly weathered, felsic rocks are dominated by magnetite which the AQ should be able to handle
      Volcanic hot rocks or black sand beaches (i.e. Hawaii)
      If fresh, the main source of MS is magnetite. If weathered or partially weathered to maghemite, the AQ may have problems. If very fine grained even unwethered volcanic rocks may present a problem.
      Da Costa, A.C.S, Bigham, JM, Rhoton, FE, and SJ Traina. 1999. Quantification and Characterization of Maghemite in Soils Derived from Volcanic Rocks in Southern Brazil. Clays and Clay Minerals, v. 47, no. 4, p. 466-73.
      Hunt, CP, Moskowitz, BM, and SK Banerjee. 1995. Magnetic Properties of Rocks and Minerals. In Rock Physics & Phase Relations: A Handbook of Physical Constants, Volume 3.
      Koch, C.B, Borggaard, OK, and A. Gafur. 2005. Formation of iron oxides in soils developed under natural fires and slash-and-burn based agriculture in a monsoonal climate (Chittagong Hill Tracts, Bangladesh). Hyperfine Interact 166, 579–584.
      Rivers, JM, Nyquist, JE, Terry, D.O., and W. E. Doll. 2004. Investigation into the Origin of Magnetic Soils on the Oak Ridge Reservation, Tennessee. Soil Science Society of America Journal, Vol. 68 No. 5 p. 1772-1779.
